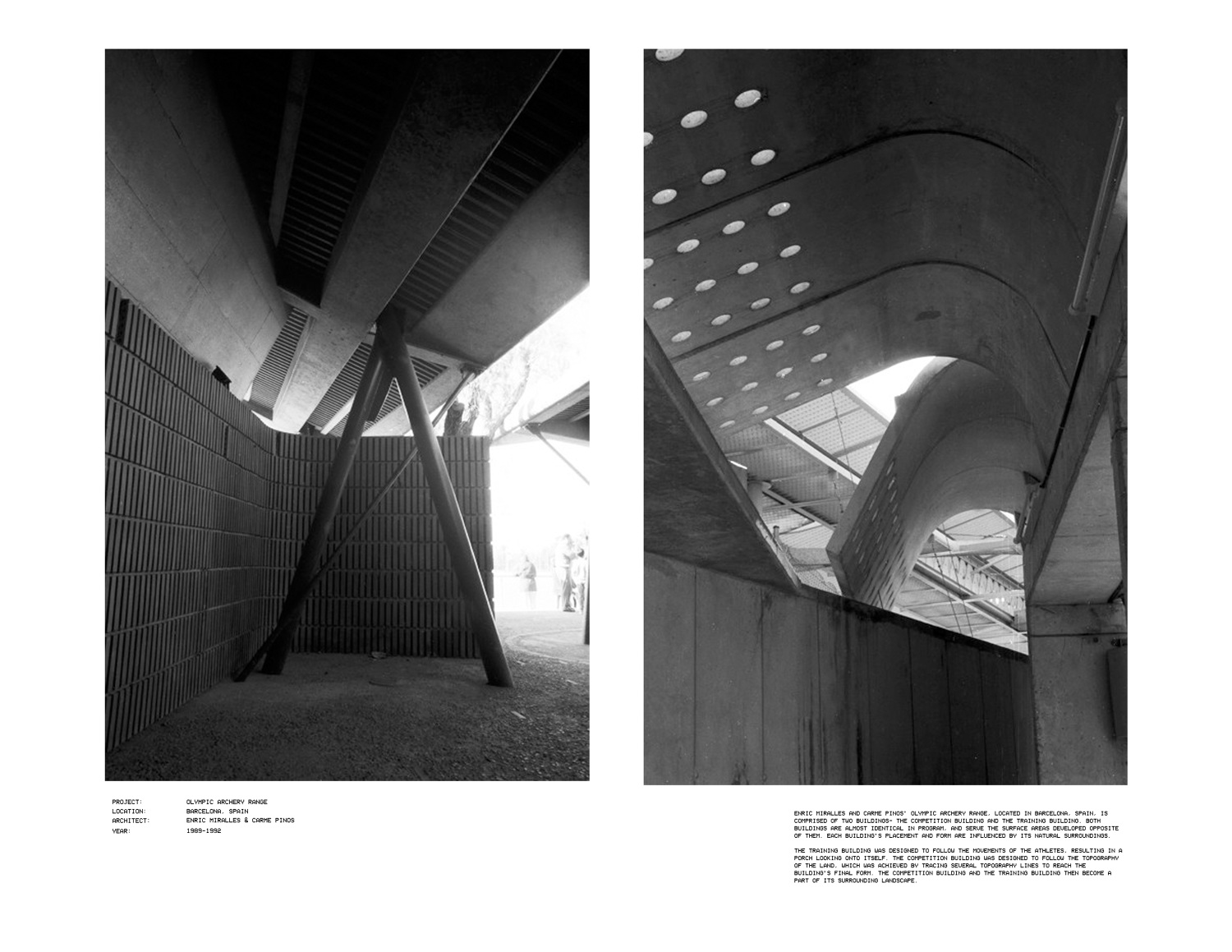

ENRIC MIRALLES AND CARME PINOS’ OLYMPIC ARCHERY RANGE, LOCATED IN BARCELONA, SPAIN, IS COMPRISED OF TWO BUILDINGS- THE COMPETITION BUILDING AND THE TRAINING BUILDING. BOTH BUILDINGS ARE ALMOST IDENTICAL IN PROGRAM, AND SERVE THE SURFACE AREAS DEVELOPED OPPOSITE OF THEM. EACH BUILDING’S PLACEMENT AND FORM ARE INFLUENCED BY ITS NATURAL SURROUNDINGS.THE TRAINING BUILDING WAS DESIGNED TO FOLLOW THE MOVEMENTS OF THE ATHLETES, RESULTING IN A PORCH LOOKING ONTO ITSELF. THE COMPETITION BUILDING WAS DESIGNED TO FOLLOW THE TOPOGRAPHY OF THE LAND, WHICH WAS ACHIEVED BY TRACING SEVERAL TOPOGRAPHY LINES TO REACH THE BUILDING’S FINAL FORM. THE COMPETITION BUILDING AND THE TRAINING BUILDING THEN BECOME A PART OF ITS SURROUNDING LANDSCAPE.

Project:     OLYMPIC ARCHERY RANGE
Location:    BARCELONA, SPAIN
Architect:   ENRIC MIRALLES & CARME PINOS
Year:        1989-1992

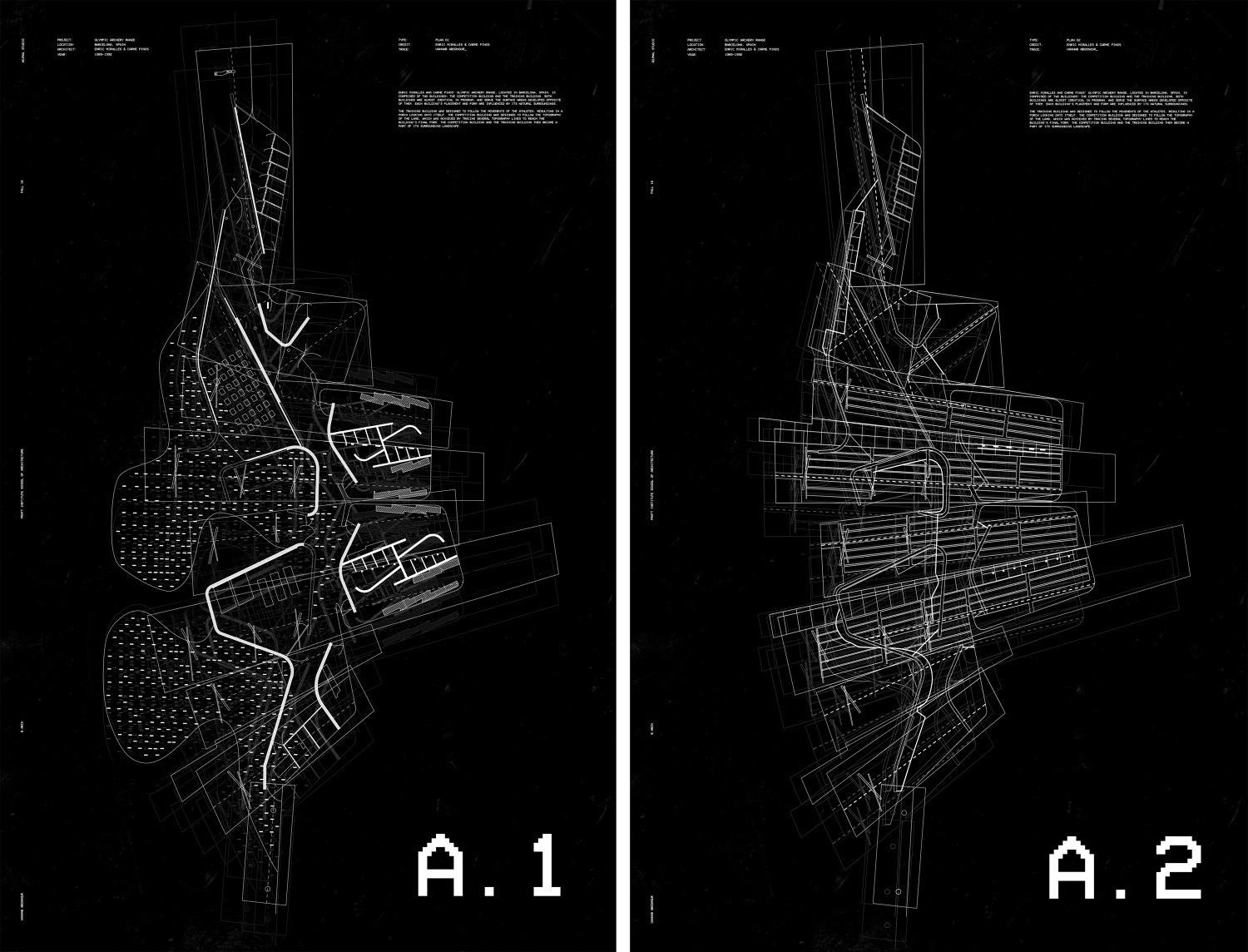

Pl_A.1+A.2
Type:                   Plan Reconstruction
Date:                   10/12/2016
Association:            Ajmal Aqtash Studio

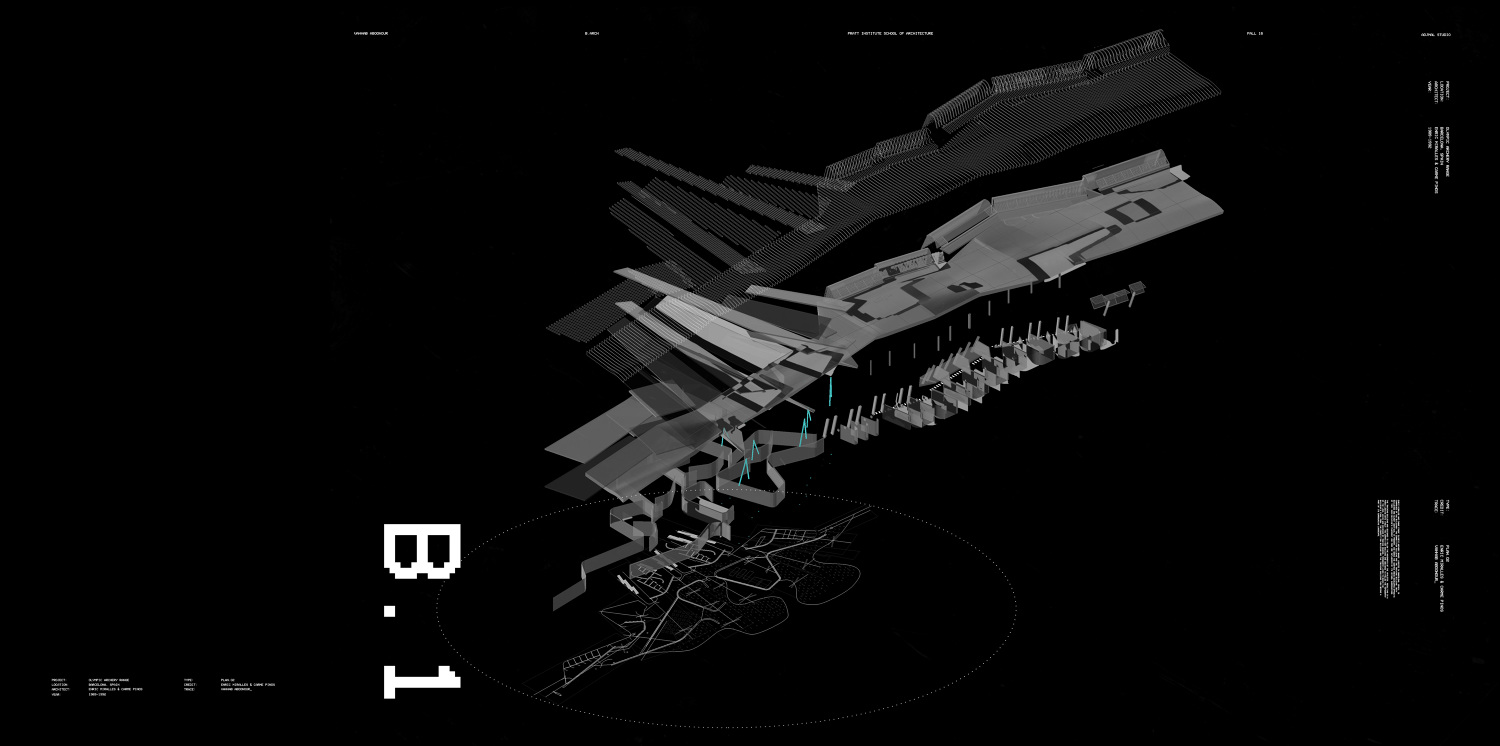

Ex_Ax2
Type:                   Plan Reconstruction
Date:                   10/12/2016
Association:            Ajmal Aqtash Studio
